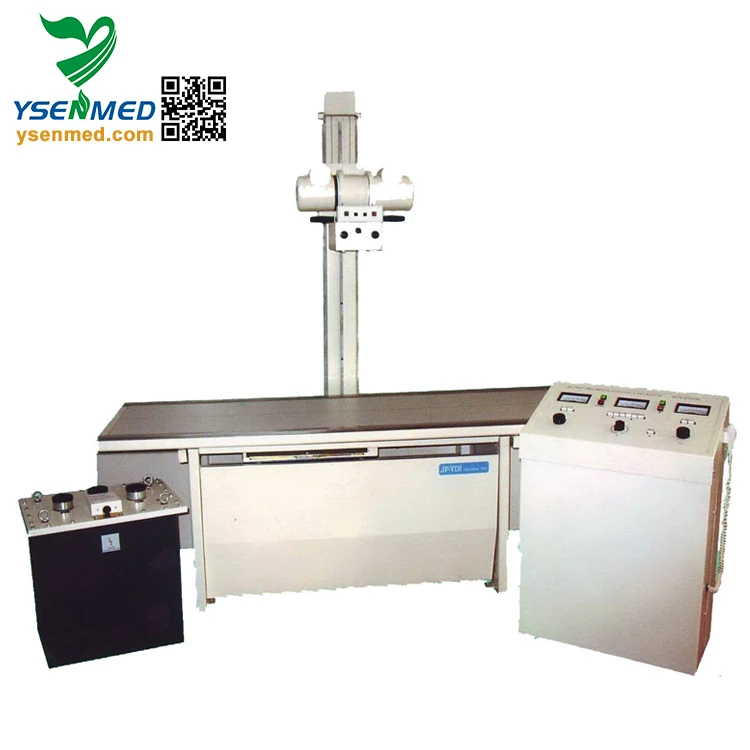

YSX200 China Price Medical Radiography 200mA Static X-ray Unit X Ray Machine For Hospital

FOB Reference Price:Get Latest Price
$7,000.00 - $9,000.00 / Sets | 1 Set/Sets x-ray machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Properties:
Medical X-ray Equipments & Accessories
Brand Name:
Yushen
Model Number:
YSX200
Place of Origin:
Guangdong, China
Product name:
Digital moblile x-ray machine
Application:
X-ray Room ,Radiography Department
Output voltage:
50~90KV
Voltage Frequency:
380V/220V ±1050HZ ±0.5Hz
Intemal resistance:
0.752Ω(380V) 0.25Ω(220V)
Adjustable range:
380±10% at 220V being adjustable continuously
X-Ray tube:
XD51.20-40/100
Time:
0.04~6.35s adjustable
Column rotation:
±180°
Capacity:
20KVA
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Medical equipment conventional x-ray machine prices
wooden case
Port
Guanghzou
Lead Time :
Shipped within 10-15days after payment

YSX200 China Price Medical Radiography 200mA Static X-ray Unit  X Ray Machine For Hospital





 YSX200 China Price Medical Radiography 200mA Static X-ray Unit X Ray Machine For Hospital



Use

General radiography, Filter-ray-filter radiograph




Unit Configuration
Control, HT generator unit, Ht cable, X-ray tube unit, Radiographic table-X-ray source column, Collimator






Function
The unit can used for general radiography, Bucky radiography of body’s head, chest, foot and hand, bones in lying






Feature
1. meter-indicating
2. single-table single tube
3. single-phase, full wave rectification
4. stationary anode x-ray tube assembly
5. X-ray tube filament s voltage regulator, space charge compensator
6. Radiograph plain table wimple structure and easy assembling






Main Techinical Indexes

ITEMCONTENTSINDEX (YSX200)
Demand of power supplyCapacityTwo-phase 30KVA
Voltage Frequency380V/220V   ±10%50HZ ±0.5Hz
Intemal resistance0.75Ω(380V)0.25Ω(220V)
power supplyAdjustable range380±10% at220V being adjustable continuously
RadiographVoltage50-100KV  being  adjustable  continuously
currentSmall focus:50mA100mA,   Big focus:50Ma 100mA  200mA  300mA
time0.04~6.35s 23grades together grading a according to R10 coefficient
High-voltage generatorCapacity20KVA(instantaneous)
Max DC output voltage100KV
Max DC output current200mA
X-Ray tubeModelXD51.20-40/100
FocusSmall focus 1×1mm  big focus2×2mm
Radiographic tableLength*width*height of bed surface2000mm×665mm700mm
Moving range of bed surface640mmin Length,200mmin breadth
Ray-filter of tableTravel in length ≥500mm
Grid density N=28
Convergence distance f。=100cm
Grid ratio r=8
Column of X-ray tube unitMoving Longitudinally along Radiographic table1000mmor 1800mm
Distance to friend as moving up and down (along column)650~1800mm
Rotary around the center of cross arm±180°
Rotary around the shaft line of X-ray annular tubes-10°~60°~  +120°
Max size of cassette356mm×432mm(14×17)





YSX200 China Price Medical Radiography 200mA Static X-ray Unit  X Ray Machine For Hospital

YSX200 China Price Medical Radiography 200mA Static X-ray Unit  X Ray Machine For HospitalYSX200 China Price Medical Radiography 200mA Static X-ray Unit  X Ray Machine For Hospital

 YSX200 China Price Medical Radiography 200mA Static X-ray Unit  X Ray Machine For Hospital
