YSOT-DT61 China Hospital Medical LED Surgical Light Operation Lamp Operating Room Lighting Equipment

FOB Reference Price:Get Latest Price
$1,350.00 - $3,800.00 / Unit | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Yushen
Model Number:
YSOT-DT61
Instrument classification:
Class II
Type:
Surgical Lamps
Diameter of light heads:
610mm
Max Central Illuminance at 4,500 K [Lux]:
160,000
Color temperature Adjustable:
3500, 4000, 4500
Red Color Index (R9):
≥93
Light Field, d10:
160±15mm
Light Field, d50:
80±15mm
Life time light sources:
50000
Power supply:
24 V AC/DC, 100 V - 240 V AC
Ceiling height for installation:
270-320cm
Supply Ability
Supply Ability:
500 Unit/Units per Month LED Operating Lamp
Packaging & Delivery
Packaging Details
Standard package for LED surgical operating lamp
Port
Guangzhou

YSOT-DT61 China Medical LED Surgical Light Operation Lamp Operating Room Lighting  Equipment

 YSOT-DT61 11YSOT-DT61 12

YSOT-DT61 China Medical LED Surgical Light Operation Lamp Operating Room Lighting  Equipment



Product Introduction:

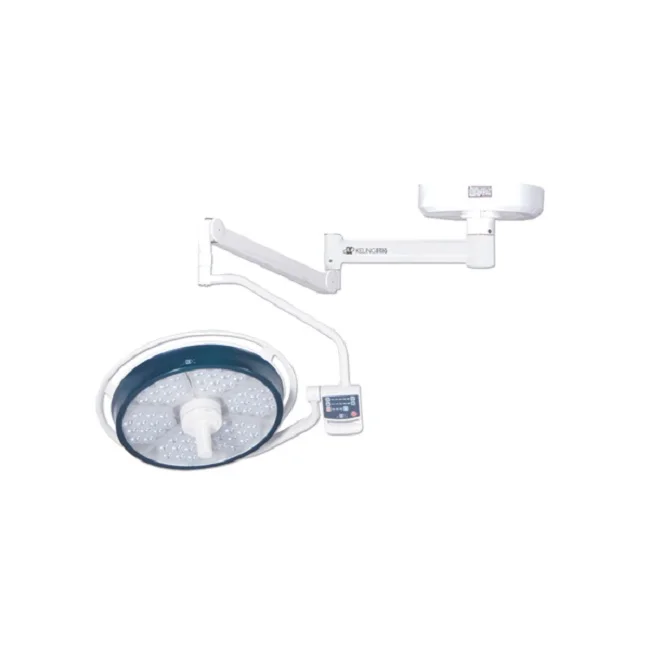

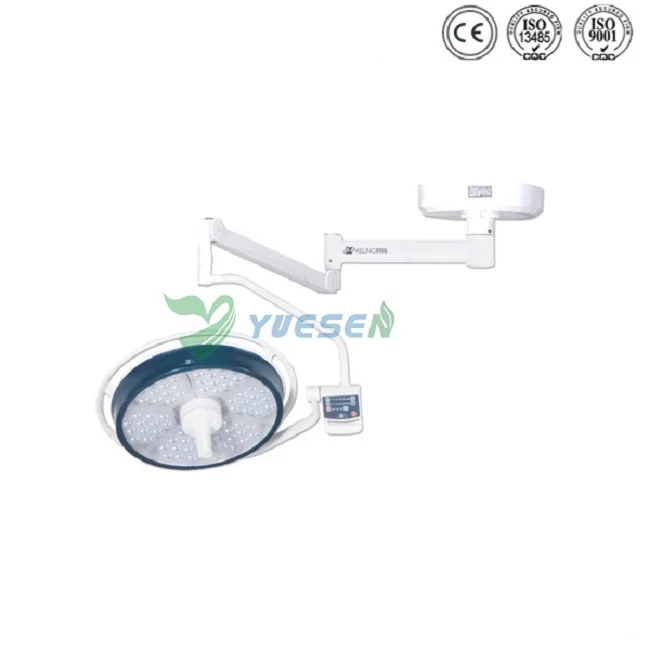

YSOT-DT61 shadowless operation lamp is suitable for the requirements of various operation conditions and it is ideal operating lighting equipment for modern operation rooms and clean operation rooms.





Technical Specification:



Technical Data (in 1m distance) YSOT-DT61
Diameter of light heads [mm]610
Max Central Illuminance at 4,500 K [Lux]160,000
Illuminance Measured Adjustable [Lux]6,0000-160,000
Colour temperature (standard) [K]4500
Color temperature Adjustable [K]3500, 4000, 4500
CRI (Color rendering index) [Ra]≥95
Red Color Index (R9) [R9]With out (R9)
Light Field, d10 [mm]160±15
Light Field, d50 [mm]80±15
Light field diameter adjustable [mm]200-280
The way of adjustalbe light field diameterElectrically
Depth of illumination (L1 + L2) [cm]130
Heat-to-light ratio [mW/m2-lx]3.3
Temperature increase in head area Approx [°C]≤2
Light sources [pcs]72 high performance LED
Life time light sources [h]50000
Max. Power consumption of all light sources [W]72
Power supply24 V AC/DC, 100 V - 240 V AC
Ceiling height for installation [cm]270-320







Features:

1.An imported LED cold light source is adopted.
2. With electric focusing function.
3. Nano coating and die-cast aluminum enclosure creating a streamlined excellent cooling effect.
4. Digital means are adopted for stepless regulation of LED brightness.
5. The removable handle sheath can be disinfected at the high temperature of 135 ℃.
6. The no welding titanium alloy arm,Imported spring arm is lifted and lowered easily and freely.
7. The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.
8. Adjustable color temperature, R9 features that enhance the red color rendering index.
9. The service life of LED shadowless lamp is long (50,000h).
