Binocular Multi-function Surgical Neurosurgery Microscope Ophthalmic Operating Microscope

FOB Reference Price:Get Latest Price
$7,620.00 - $7,900.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ysenmed
Model Number:
YSLZJ4D
Theory:
Biological Microscope, Biological Microscope
Drawtube:
Binocular, Binocular
Product name:
ent operating microscope prices
Big objective lens:
F: 200, 250, 300, 400mm (Optional: apochromatic objective lens)
The maximum brightness:
80000Lux
Binocular tube focus:
160mm
The diameter of visual field:
80mm ~ 12.5mm
Cold light source:
2V, 100W
Eyepiece:
12.5x, wide-angle,adjustable vi
The range of ocular distance:
50 ~ 75mm
Supply Ability
Supply Ability:
100 Set/Sets per Month ophthalmic operating microscope
Packaging & Delivery
Packaging Details
Carton box for neurosurgery microscope
Port
guangzhou

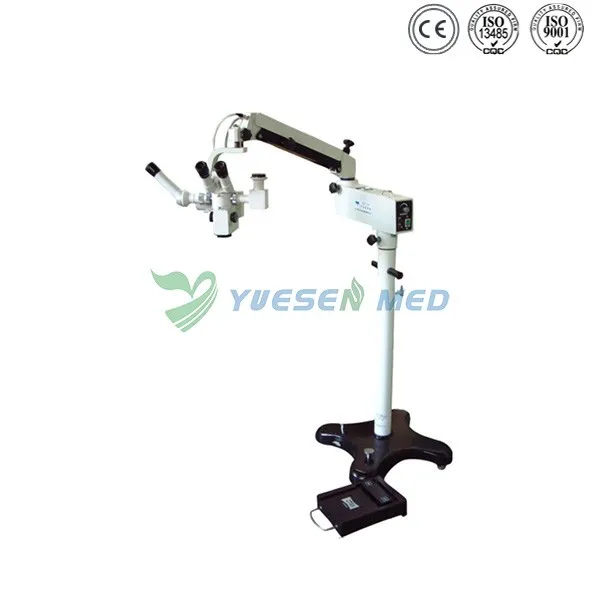

 Binocular Multi-function Surgical Neurosurgery Microscope  Operating  Microscope


Model: YSLZJ4D

 Binocular Multi-function Surgical Neurosurgery Microscope  Ophthalmic Operating  Microscope



Application

This is a light multi-function operation microscope developed which can be used in the operations such as brain surgery, ENT, ophthalmology etc.



The optical routeway of the microscope adopts the parallel optical routeway and it has the features of big field depth, wide vision field and uniform illumination.

Single ocular teaching scope, camera interface and CCD interface are available for choice.

The instrument is also ideal for animal dissection and microsurgery teaching.



Specification

1). Binocular tube focus: 160mm

2). Eyepiece: 12.5x, wide-angle,adjustable visual degree and caging device.

3). Big objective lens: F: 200, 250, 300, 400mm (Optional: apochromatic objective lens)

4). Motorized focusing by foot control, the fine focusing range:40mm

5). The diameter of visual field: 80mm ~ 12.5mm

6). The range of ocular distance:50 ~ 75mm

7). The main microscope  has six movements of degrees of freedom

    Easily adjustment by hand. Tilting range in swing:  ±30°,Tilting range in pitching: -5°~90°

8). Five steps magnification change,Ratio of magnification:1:6, magnification:4x,6x,10x,16x,24x

9). Cold light source: 12V, 100W, The maximum brightness: 80000Lux

10). Pneumatic spring balance stand.   Arm stretch radius: 1200mm

       freely rotation > 180°, Movement range of up-down ≥ 500mm

11). Voltage and frequency of power supply:  220V±10%, 50Hz±1Hz or 110V±10%, 60Hz±1Hz



Optional Accessories:

Splitter, monocular Teach mirror, digital camera interface, 1/3 inch CCD camera interface,

the optional xenon lamp lighting, 0°eyepiece.
